PFA Lined Instrument Connection – Bueno

Specifications
  • Chemical Processing
  • Water Treatment
  • Power Generation
  • Ultrapure Chemical Processing
  • Use for acids, caustics, bleache, and etc.
Material List

Shell: ASTM A48 grade 25

Liner: PFA ( Fluoropolymer )

Dimensions
UNIT:mm
Norminal Size F F’ A P t t’
INCH mm
1″x1″ 25×25 50.8 50.8 50 90 3 3
1-1/2″x1″ 40×25 73.2 50.8 50 100 3 3
2″x1″ 50×25 91.9 50.8 50 114 3 3
2-1/2″x1″ 65×25 104.6 50.8 50 127 4.1 3
3″x1″ 80×25 124 50.8 50 140 4.1 3
4″x1″ 100×25 157.2 50.8 50 165 4.1 3
6″x1″ 150×25 212.7 50.8 50 200 4.1 3

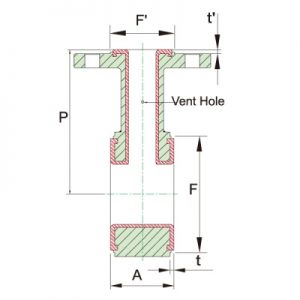

Construction Drawing
